Technical Data |
|
|

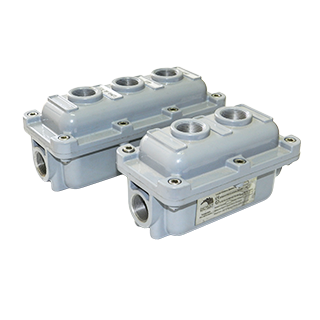

Explosion proof Junction Local control station LCS 2- – -, 3- – – |
|
| Marking to 94/9/EC | Gas II 2 G Ex d II B+H2 T6 Gb |
| Ambient temperature | -20˚C ≤ T ≤+55˚C |

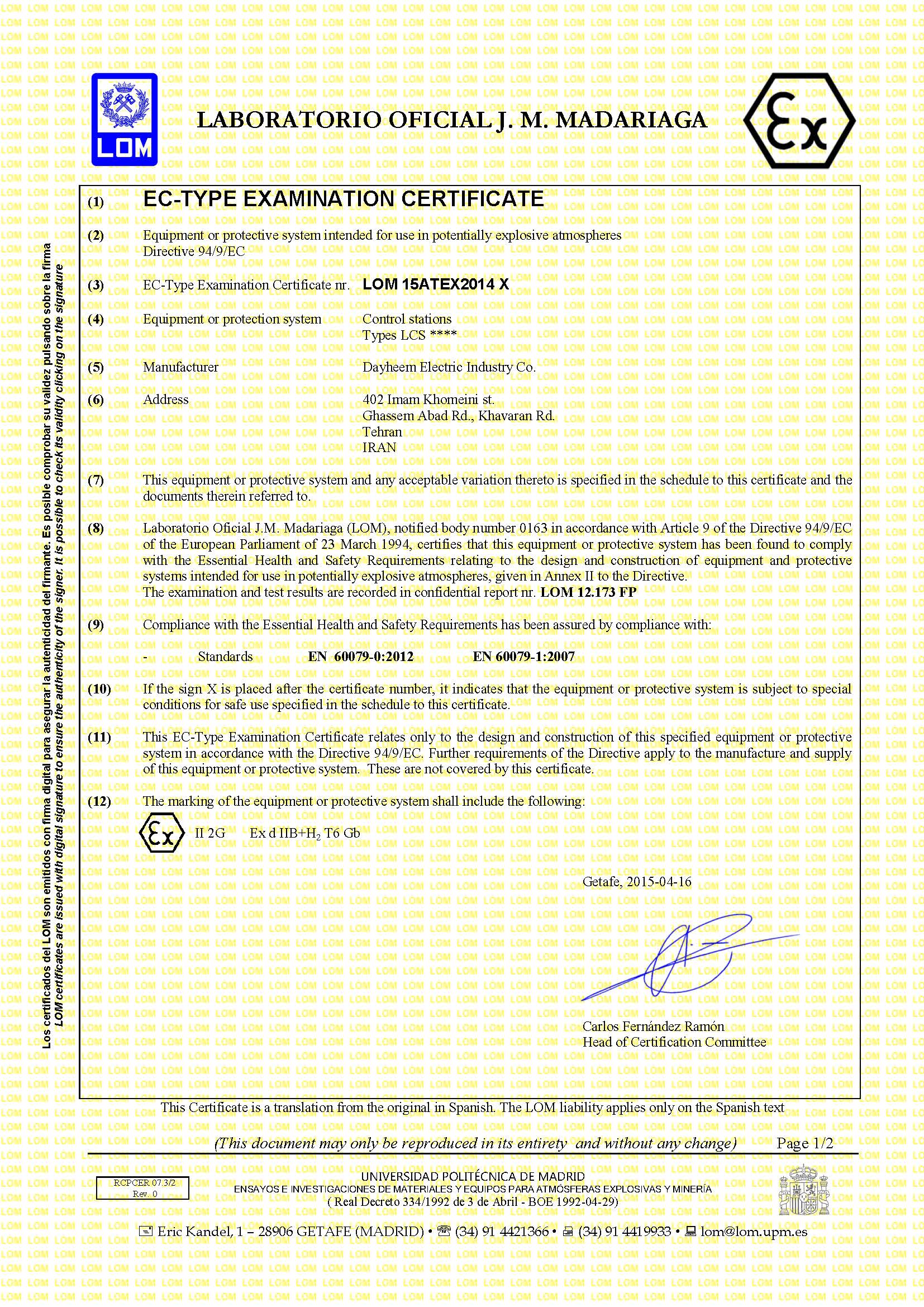

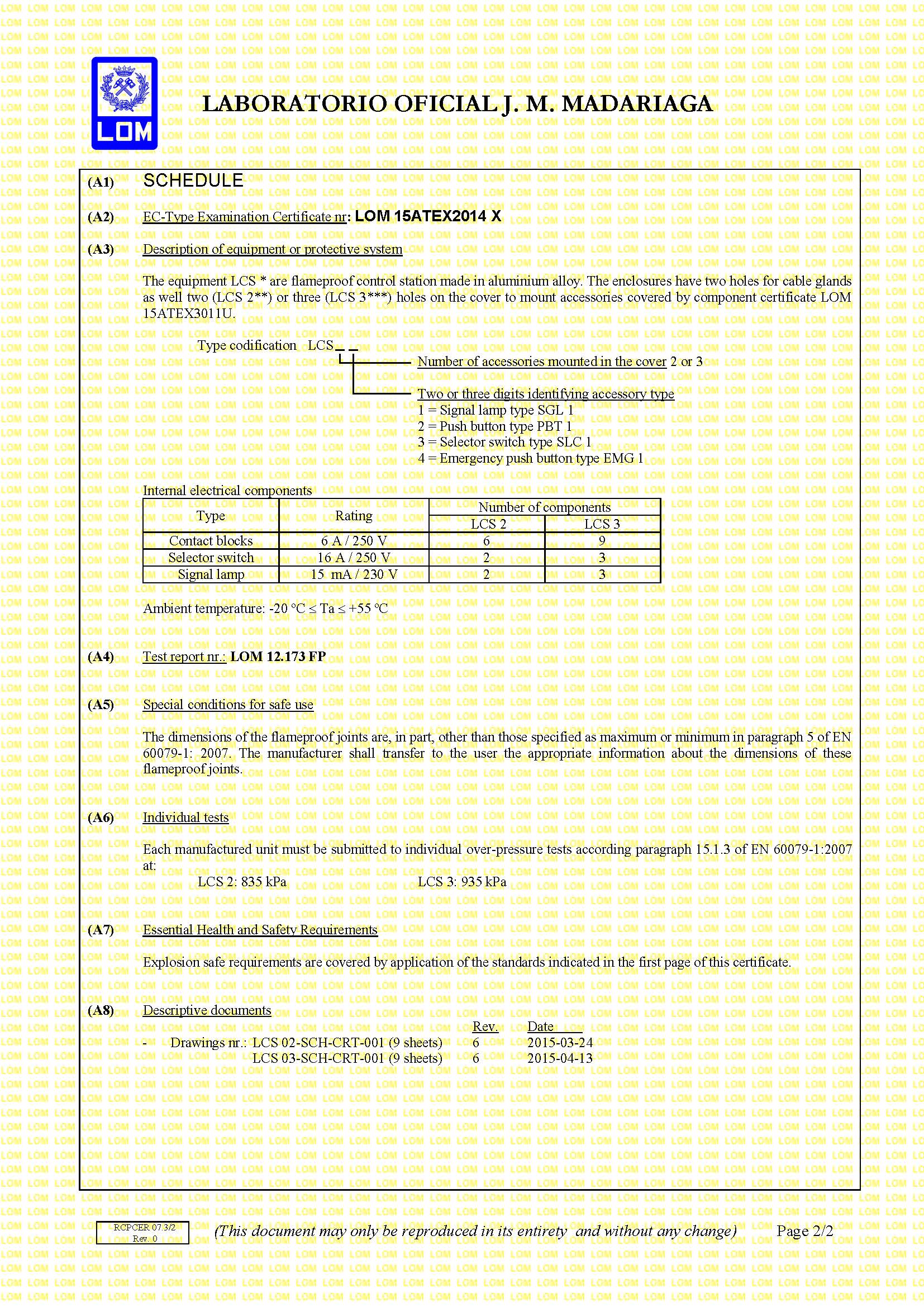

| EC-Type examination certificate | LOM 15 ATEX 2014 U |
| Degree of protection | IP 65 |
| Material | Copper free die casting aluminum |
| Inside diameter | ø75 mm |
| length of terminal rail | 45 mm |
| Weight | 800 gr |
| * Can be elevated using non hardening grease. | |
